Khoom Description

Muaj zog tag nrho-steel tsim
Hardened siab phaj thiab tus nplaig
Ua kom ntev ci enamel tiav

Universal Phaj Clamps
Rated Peev xwm t	Kuaj Load KN	MAX.Jaw Qhib mm	A/mm	B/mm	C/mm	D / hli	E / hli	Qhov hnyav / kg
1	14.7	22	＞22	123	65	275	50	3.6
2	29.4	30	＞30	137	71	305	55	5
3	44.1	40	＞40	165	83	340	60	7.7
5	73.5	50	＞50	190	100	405	60	14.2
6	88.2	60	＞60	238	116	476	80	21
10	147	76	＞76	338	134	650	100	40

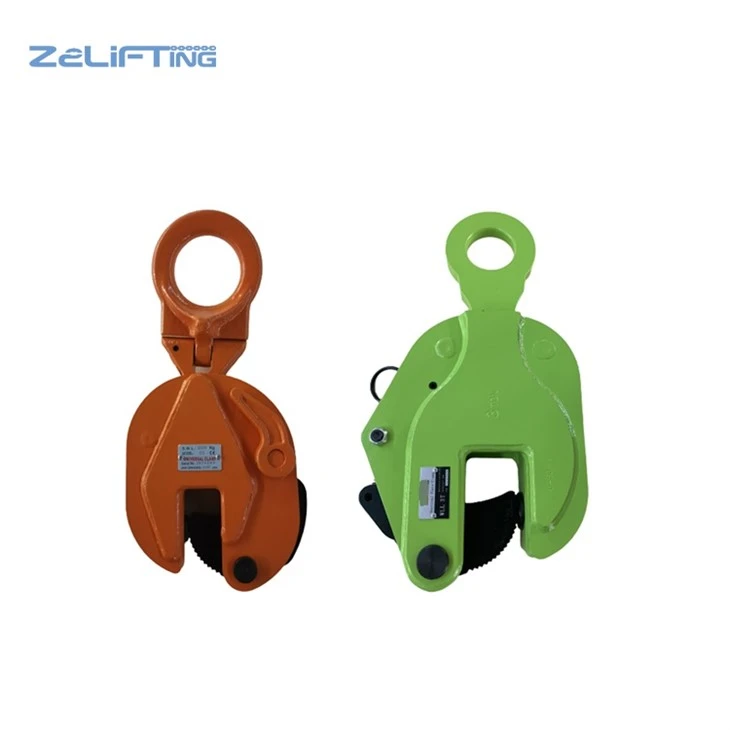

Universal / Vertical Lifting Steel Clamp

Feem ntau ntawm cov sij hawm, ntsug steel phaj clamps yog siv ib leeg los yog sib koom los ntawm ob. Txoj kev lifting feem ntau yog tsau vertically ntawm ib sab ntawm steel phaj. Ntawm chav kawm, txoj hauj lwm no yuav tsum tau xaiv nyob rau hauv nruab nrab ntawm ib sab ntawm steel phaj. Cov cuab yeej xauv yog tsau.

Kab rov tav phaj Clamp

Kab rov tav phaj lifting clamps feem ntau tau txais ntau txoj kev sib koom, thiab lub hom phiaj hoisting feem ntau yog cov phaj loj, thiab kev faib tawm ntawm kab rov tav dai steel clamps yuav tsum yog thiab tsim nyog los xyuas kom meej qhov sib npaug ntawm kev nqa haujlwm.
