G80 Qhob Swivel Vaj Huam Sib Luag Lifteryog zoo kawg nkaus suited rau ntau yam ntawm lifting daim ntaub ntawv uas muaj precast qhob khoom.Cov khoom no tau raug tsim los xyuas kom meej tias kev nqa ntawm precast qhob piv txwv rau txhua kab, lossis staircases ua tiav kom nyab xeeb thiab ua haujlwm tau zoo.
 |
 |
|
PRODUCT CODE |
WLL | LUB SIJ HAWM | DIMENSION (mm) | |||||
| tonne | KG/unit | D±1 | E | F | H | M | L | |
| 101 ZPO 13 | 1-1.3 | 0.89 | 70.5 | 45 | 73 | 157 | 11.5 | 181 |
| 101 ZPO 25 | 1.52.5 | 1.3 | 85 | 57 | 88 | 190 | 16 | 220 |
| 101 ZPO 50 | 3-5 | 3.24 | 88 | 69 | 110 | 233 | 22 | 271 |
| 101 ZPO 100 | 6-10 | 10 | 116 | 83 | 161 | 336.5 | 30 | 386 |
| 101 ZPO 200 | 12-20 | 20.4 | 133.5 | 107.5 | 182 | 437 | 42 | 497 |
| 101 ZPO 320 | 32 | 46 | 189 | 162 | 272 | 570 | 54 | 755 |

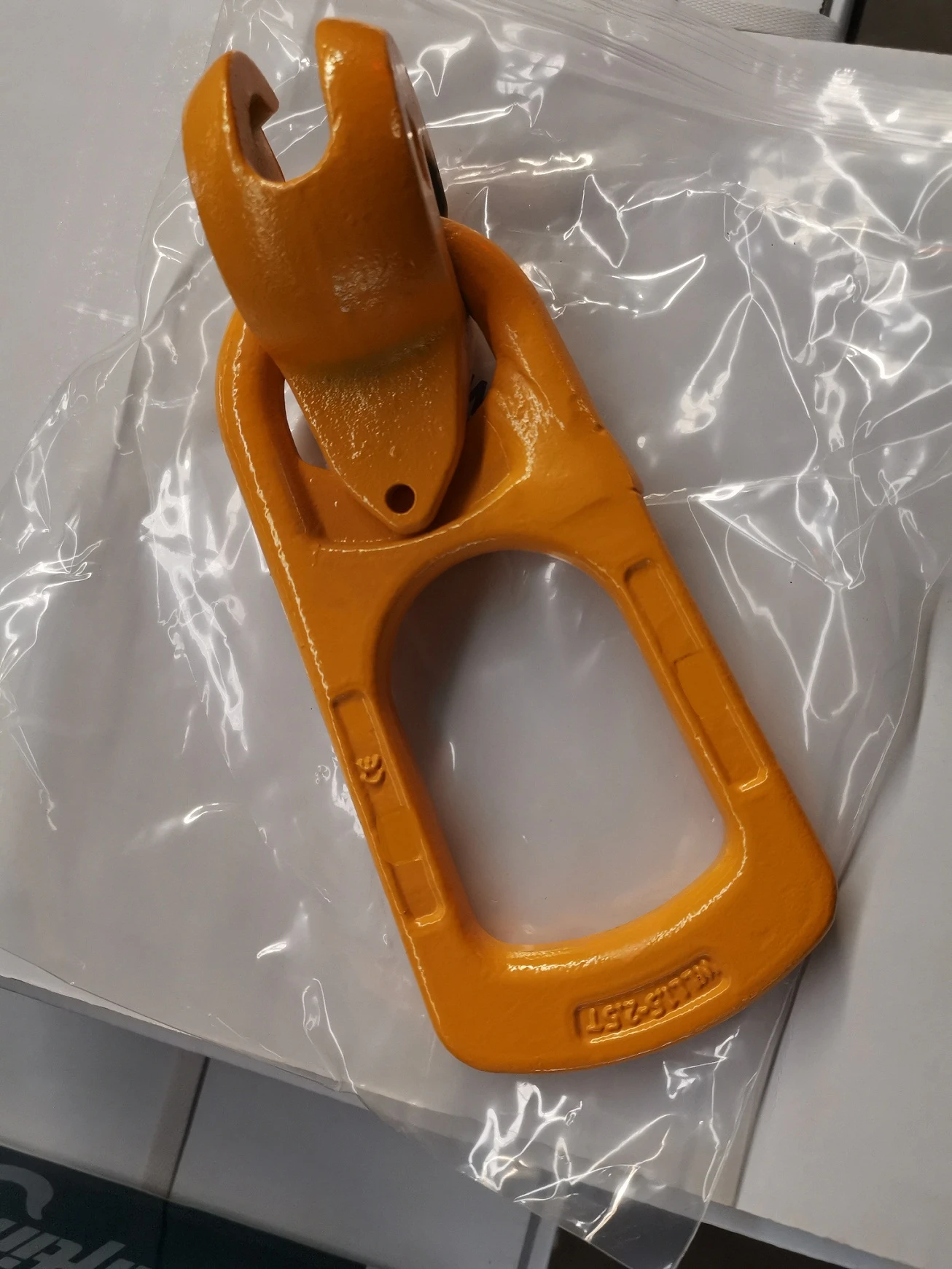

Cov duab ntawm G80 Concrete Swivel Vaj Huam Sib Luag Lifter
- Ua los ntawm G80 alloy steel nrog kev nyab xeeb ntawm 4: 1 & 5: 1.
- Kev kho deg: Zinc Plated / Powder Coated
- Lub pob zeb swivel lifter qhov muag muaj lub bracket thiab lub taub hau txuas. Lub bracket tuaj yeem txav mus rau txhua qhov chaw. Lub taub hau ntawm lub coupling haum lub taub hau ntawm ko taw thauj tog rau nkoj.
 |
 |
|
| Hmoov coated - Txiv kab ntxwv xim | Hmoov coated - Pink xim | |
 |
 |
|
| Cov ntawv pov thawj muaj nyob rau hauv txhua chav | ||
 |
 |
|
| Cov cim tsis tu ncua: 1-1.3T CE ntxiv rau ID & BATCH NO. | Laser npav | |
|
Formal & Customized Ntim |
||
 |
 |
|
| Dawb thawv | Xim thawv | |
Kev siv Ib puag ncig
 |
 |
 |
 |
