AS Hlau Rope Thimble Description

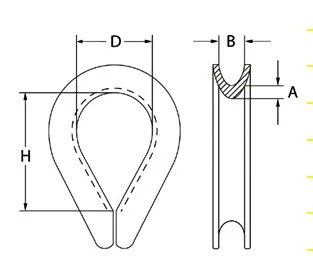

| Loj mm | Nyhav kg | Ib mm | B mm | D mm | H mm |
| 6 | 0.04 | 4 | 7 | 25 | 16 |
| 8 | 0.052 | 5 | 7.9 | 33 | 22 |
| 10 | 0.08 | 5 | 10.3 | 38 | 25 |
| 12 | 0.13 | 6 | 14.3 | 44 | 32 |
| 14 | 0.15 | 7 | 15 | 46 | 38 |
| 16 | 0.26 | 8 | 15.9 | 59 | 41 |
| 18 | 0.35 | 8 | 18 | 65 | 46 |
| 20 | 0.5 | 10 | 21.6 | 75 | 52 |
| 24 | 0.9 | 11 | 25.4 | 92 | 64 |
| 28 | 1.1 | 12 | 28.6 | 111 | 76 |
| 36 | 2.2 | 16 | 38 | 152 | 105 |
| 40 | 3.2 | 18 | 43 | 165 | 114 |
| 48 | 8.2 | 22 | 51 | 190 | 134 |
| 52 | 11 | 22 | 55 | 203 | 140 |

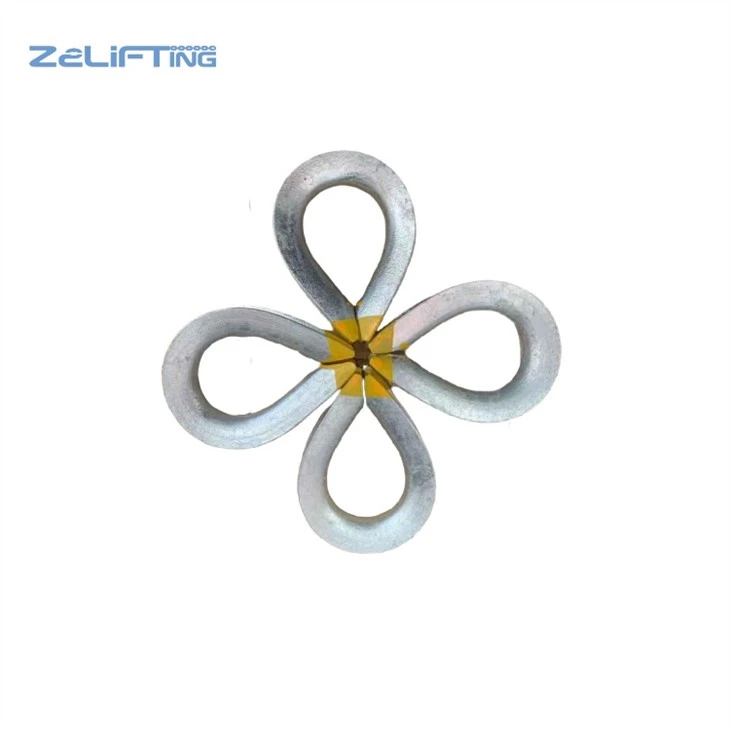

Hlau Rope Thimble Galvanized Nta:
1. High tensile AS thimbles yog recoomended rau hnyav daim ntawv thov
2. Rau nqa lub hom phiaj
3. Kub dip galvanized tiav
4. Ua raws li AS1138

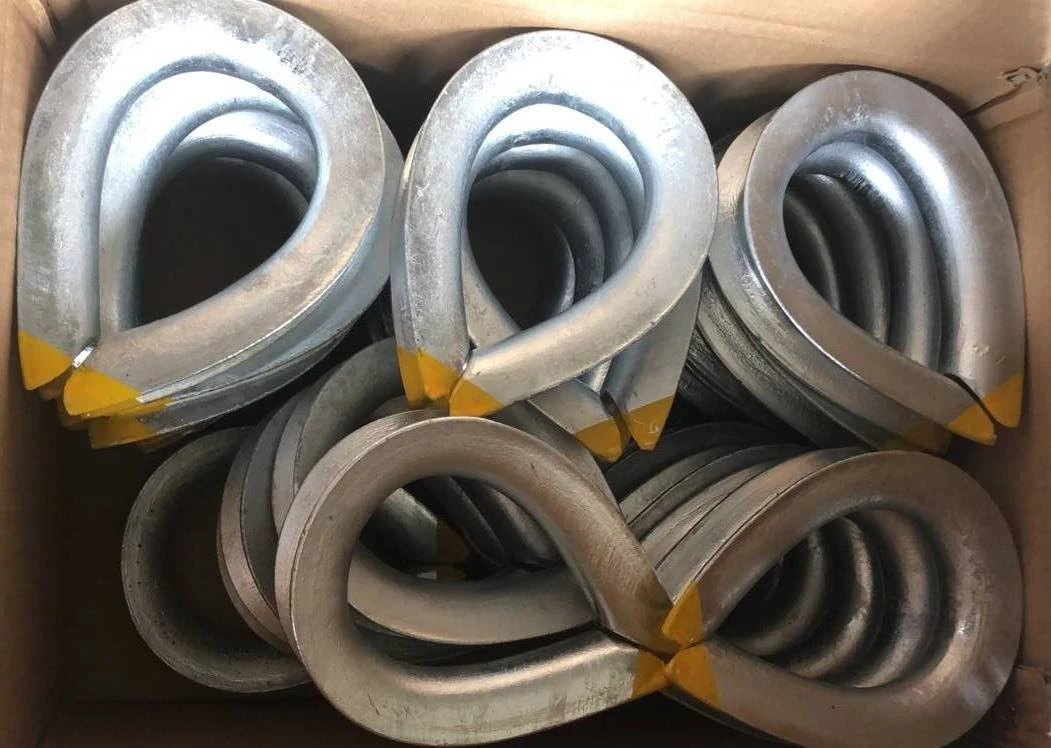

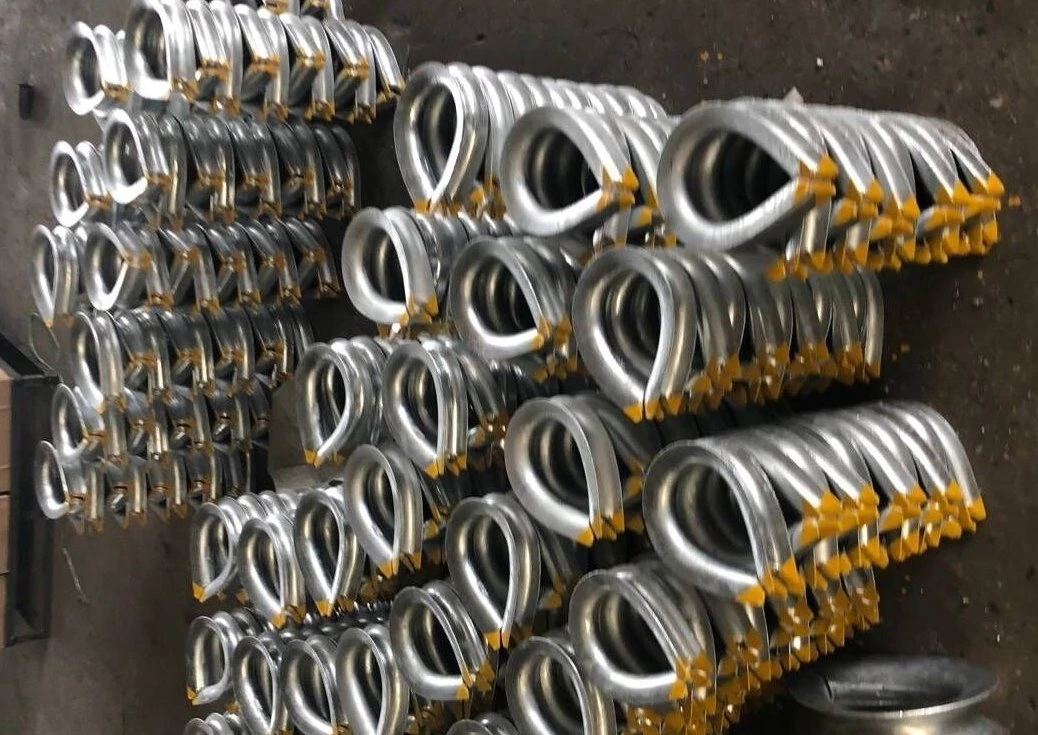

Cov khoom lag luam ntau & ntim cov hlua Thimble
|
|
 |  |
Qee Cov Lus Cim rau Galvanized Thimble
Lub thimble yuav tsum du thiab tiaj tus, tsis muaj kab nrib pleb, blemishes, cov npoo ntse thiab qhov tsis sib xws uas yuav ua rau cov hlua hlau puas.
2. Qhov saum npoo yuav tsum yog kub-dip galvanized, yuav tsum tsis txhob muaj qhov tsis xws luag xws li to, zinc hais, npuas, tawg, thiab lwm yam. Cov txheej txheej galvanized yuav tsum muaj lub zog adhesion txaus thaum lub sijhawm ua haujlwm.
3. Kev nyab xeeb ntawm lub thimble yuav tsum tsis pub tsawg dua 32 feem pua ntawm qhov tsawg kawg nkaus tawg quab yuam ntawm cov hlua hlau thimble
Cim npe nrov: hlau hlua thimble galvanized, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, nqe
