● Forged G80 alloy steel-Quenched thiab Tempered
● Haum rau G80 lifting chains
● Cov ntawv pov thawj ntawm tus kheej ntawm 2.5 zaug ua haujlwm Load Limit
● Nrog rau kev nyab xeeb ntawm 4: 1 rau saw sling
● Txhua tus pins thauj khoom yog 100% tus kheej kuaj thiab kuaj
● Regular Mark: X-8 WLLXT CE

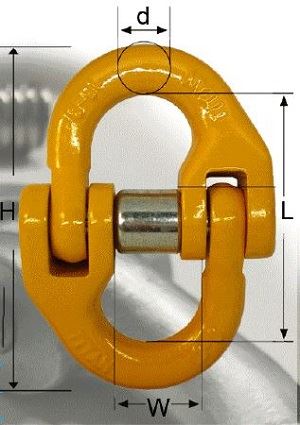

 | CHAINSIZE | W.L.L | M.B.L | DIMENSION mm | |||
mm | tonne | tonne | d±1 | H±2.5 | L±2 | W±1.5 | |
6 | 1.12 | 4.48 | 18 | 135 | 75 | 13 | |
7 | 1.5 | 6 | 18 | 135 | 75 | 13 | |
7o8 ib | 2 | 8 | 22 | 160 | 90 | 16 | |
8 | 2 | 8 | 26 | 180 | 100 | 18 | |
10 | 3.15 | 12.6 | 32 | 200 | 110 | 22 | |
13 | 5.3 | 21.2 | 36 | 260 | 140 | 26 | |
16 | 8 | 32 | 45 | 340 | 180 | 32 | |
18 | 10 | 40 | 50 | 350 | 190 | 32 | |
20 | 12.5 | 50 | 50 | 350 | 190 | 36 | |
22 | 15 | 60 | 56 | 400 | 200 | 40 | |
 | 1set suav nrog 1 lub tes tsho thiab 1 tus pin load |
 |  | |
G80 txuas txuas tuaj yeem hu ua G80 txuas txuas, rauj xauv. Nws txoj kev kho saum npoo yog xim pleev xim. Feem ntau Qib 80 yog xim daj lossis xim liab. Thiab nws tus pin load yog nyob rau hauv zoo galvanized khoom siv tes ua. | ||
 |  | |
 | Lub thawv Dawb, muaj yeeb yuj tsim tshwj xeeb lub thawv lossis lub thawv xim av feem ntau yog cov khoom ntim ntau tshaj plaws tam sim no. |
Cim npe nrov: qib 80 coupling txuas, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, nqe
