Master Link Assembly

Daim ntawv thov

Master Link Assembly feem ntau yog siv los ua cov cuab yeej txuas hauv kev nqa cov haujlwm. Nws' yog ib feem tseem ceeb ntawm 4 ceg saw sling sib dhos. Feem ntau, sub-rings yog txuas nrog txuas txuas thiab cov hlua txuas txuas kom sib sau ua ke rau hauv cov khoom siv hluavtaws rau nqa cov khoom hnyav thiab khoom siv. Nws tuaj yeem siv rau hauv tshuab, metallurgy, hluav taws xob fais fab, kev tsheb ciav hlau, kev txuag dej, chaw nres nkoj, thiab chaw nres nkoj, ntawv ua, tshuaj lom neeg thiab lwm yam lag luam.

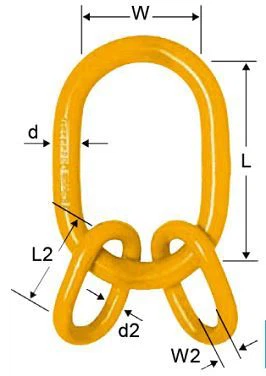

G80 Master Link Assembly Specification

	CHAIN SIZE	W.L.L	LUB SIJ HAWM	DIMENSION mm
	mm	tonne	Kg	d	L	W	d2	L2	W2
	6	2.36	1.18	18	135	75	13	54	25
	7	3.15	1.24	18	135	75	13	60	38
	8	4.25	2.2	22	160	90	16	70	34
	10	6.7	3.4	26	180	100	18	85	40
	13	11.2	6.1	32	200	110	22	115	50
	16	17	9.98	36	260	140	26	140	65
	18	21.2	18.9	45	340	180	32	180	100
	20	26.5	22.6	50	350	190	32	180	100
	22	31.5	25.2	50	350	190	36	180	100
	26	45	35.2	56	400	200	40	180	100

G100 Master Link Assembly Specification

	CHAIN SIZE	W.L.L	LUB SIJ HAWM	DIMENSION mm
	mm	tonne	Kg	d	L	W	d2	L2	W2
	6	3	1.3	19	135	75	13	84	25
	8	5.3	2.33	23	160	90	16.5	70	35
	10	8	3.7	27	180	100	19	85	40
	13	14	6.5	33	200	110	23	115	50
	16	21.2	10.1	36	260	140	27	140	65
	19o20 ib	33.6	22.8	50	350	190	33	150	70
	22	33.9	26	50	350	190	36	180	100

		Welded los yog forged los ntawm cov kws tshaj lij, qhov chaw tom qab cov hmoov coated kho.
		Lub cim yog stamped kom meej. Ob lub ntsiab txuas thiab sub-links muaj cov cim. Loj Sub Link
		Cov qauv tsim tshwj xeeb, feem ntau yog siv rau 4 ceg saw sling sib dhos. Yooj yim rau kev khiav lag luam, yooj yim los tswj.

Txawv Box Packing (lub thawv dav dav, lub thawv dawb, lub thawv muaj yeeb yuj)

Z2 Kev Ntsuam Xyuas:

Peb muab cov kev kuaj xyuas tiav / ntawv pov thawj rau feem ntau ntawm cov khoom nqa nqa thiab rigging, thiab cov khoom hauv qab no yuav raug ua hauv INSPECTION& TESTS, (tab sis tsis txwv rau):

1. Kev kuaj kom muaj nuj nqis

2. Kev tshuaj xyuas pob

3. Cov ntaub ntawv ntawm pob khoom / cov cim / cov khoom

4. Nto thiab Dimension check

5. Kev ntsuam xyuas tsis tu ncua: Kev soj ntsuam cov khoom siv pov thawj, kev kuaj xyuas pov thawj, Kev kuaj xyuas kev sib tsoo, kev kuaj xyuas elongation, kuaj xyuas hardness, kev sim qaug zog
